GATE 2020

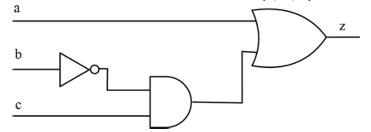

Consider the Boolean function z(a, b, c) implemented by the given logic circuit. Which one of the following minterm lists represents the circuit?
