GATE 2021 · Set-1

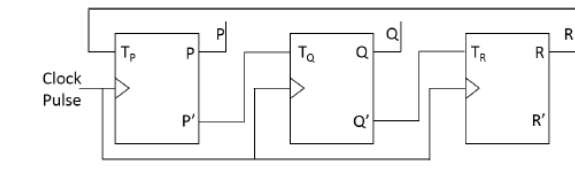

Consider a 3-bit counter designed using T flip-flops, as shown below. Assuming the initial state \(PQR\) is \(000\), what are the next three states?
