GATE 2023 · CS - Forenoon
Digital LogicCombinational CircuitsmediumMCQ2 marks

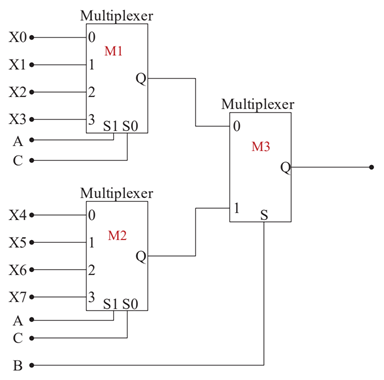

A Boolean digital circuit is composed using two 4-input multiplexers (M1 and M2) and one 2-input multiplexer (M3) as shown in the figure. X0–X7 are the inputs of the multiplexers M1 and M2 and could be connected to either 0 or 1. The select lines of the multiplexers are connected to Boolean variables A, B and C as shown. Which one of the following set of values of (X0, X1, X2, X3, X4, X5, X6, X7) will realise the Boolean function A̅ + A̅·C̅ + A·B̅·C?
