GATE 2014 · session-2
Computer NetworksTCP, UDP and IPmediumNAT1 mark

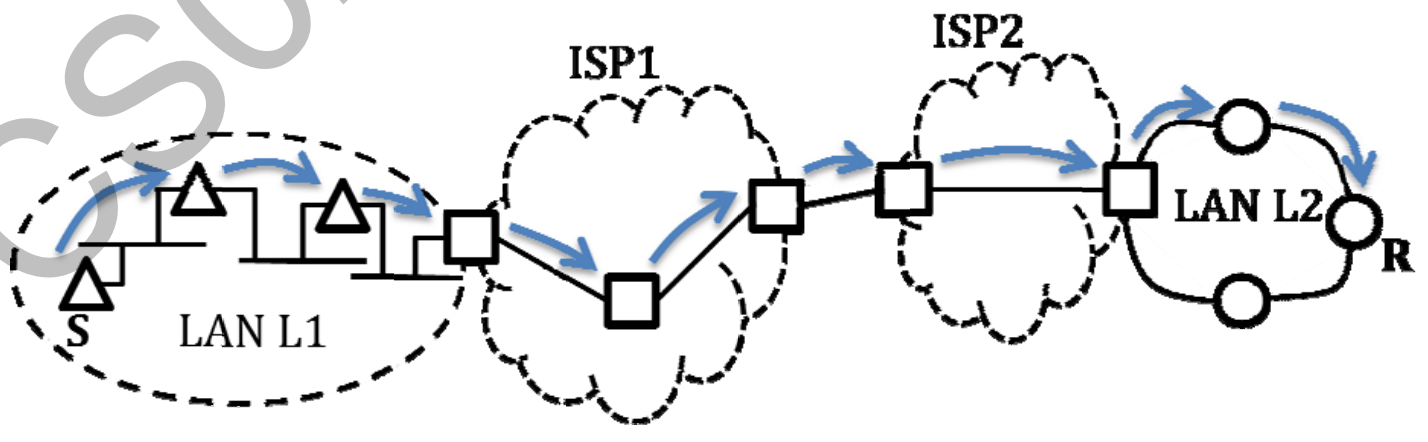

In the diagram shown in the image, L1 is an Ethernet LAN and L2 is a Token-Ring LAN. An IP packet originates from sender S and traverses to R, as shown. The links within each ISP and across the two ISPs are all point-to-point optical links. The initial value of the TTL field is 32. The maximum possible value of the TTL field when R receives the datagram is __________.
