GATE 2014 · session-1

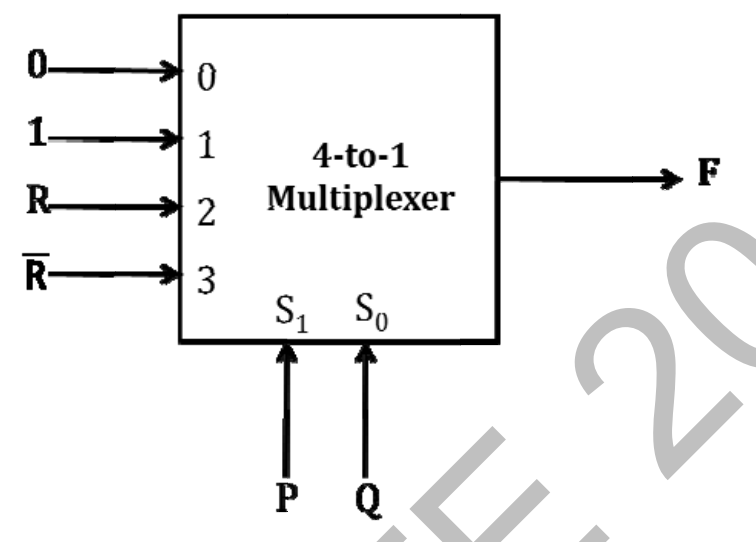

Consider the 4-to-1 multiplexer with two select lines S₁ and S₀ given in the image.
The minimal sum-of-products form of the Boolean expression for the output F of the multiplexer is
Related Digital Logic PYQs
The number of min-terms after minimizing the following Boolean expression is ________. [D' + AB' + A'C + AC'D + A'C'D]'.
The truth table represents the Boolean function
The minimal sum-of-products (SOP) expression for the Boolean function F(A, B, C) = Σm(0, 1, 4, 5, 6) is
Consider the following Boolean expression for F: F(P,Q,R,S) = PQ + P̅QR + P̅QR̅S. The minimal sum-of-products form of F is
The base (or radix) of the number system such that the following equation holds is __________. 312 / 20 = 13.1
The dual of a Boolean function F(x₁,x₂,…,xₙ,+,·,′), written as Fᴰ, is the same expression as that of F with + and · swapped. F is …
