GATE 2016 · CS1 - Forenoon

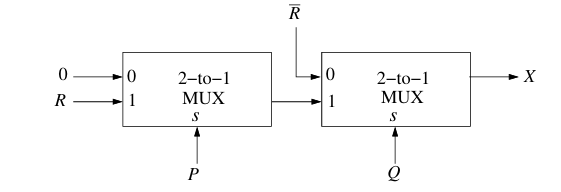

Consider two cascaded 2-to-1 MUXes. MUX 1 inputs: 0 (at in0), R (at in1) with select P. MUX 2 inputs: R' (at in0), Output_MUX1 (at in1) with select Q. The minimal sum of products form of output X is
