Consider the NPDA (Q={q0,q1,q2}, Σ={0,1}, Γ={0,1,⊥}, δ, q0, ⊥, F={q2}), where Q is the state set, Σ the input alphabet, Γ the stack alphabet, δ the transition function, q0 the initial state, ⊥ the initial stack symbol, and F the accepting-state set.

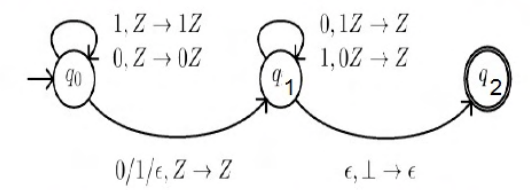

Transitions (Z denotes a stack symbol):
q0 loop: 1,Z→1Z and 0,Z→0Z.
q0→q1: 0/1/ε,Z→Z.
q1 loop: 0,1Z→Z and 1,0Z→Z.
q1→q2: ε,⊥→ε.
Which one of the following sequences must follow the string 101100 so that the overall string is accepted by the automaton?

Accepted Answer

B. 10010
